Custom Motor Coach Floor Plans

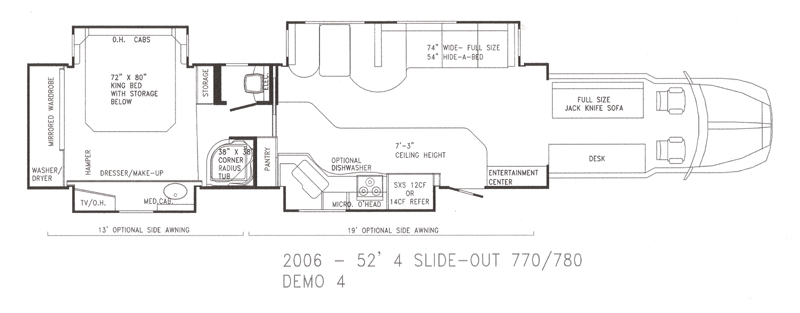

Model  Ultra Coach 52  Four  Slide Silver, Gold & Platinum
New For 2007 relocated washing machine new living room furniture
and  dinette table     the master suite is HUGE
This 400 sq. ft floor plan will accommodate a 50 inch Tv & can sleep up to10 and provide 3 separate rooms

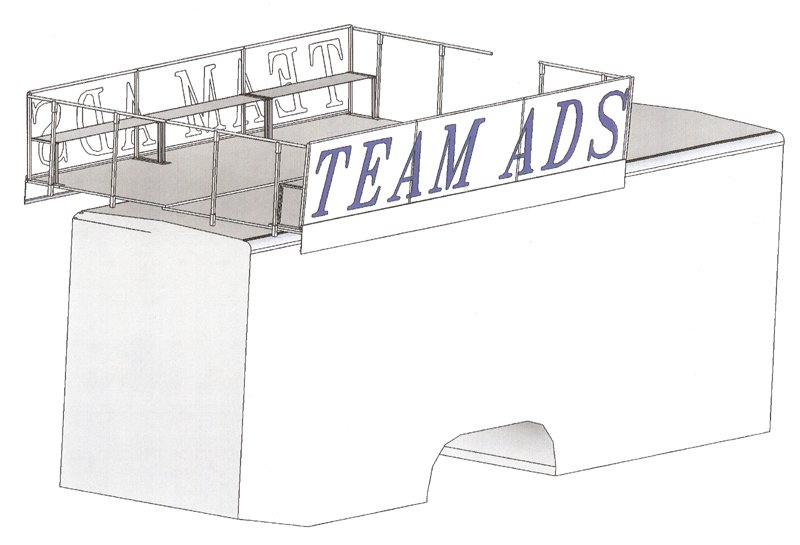

 NEW for 2009 Motor sports SKY DECK Offering a Hydraulically Expanding Upper Deck
13 Feet Wide & 21 feet long also see the 45 foot model below and 3D Sky deck in expanded & unfolded position


Larger Sharper Adobe 7.0 Reader Floor plans Listed Below
Click Your Browser Back Button To Return to this page
Get Adobe Reader Free
52 foot 4 slide on Volvo 770/780 Model Truck

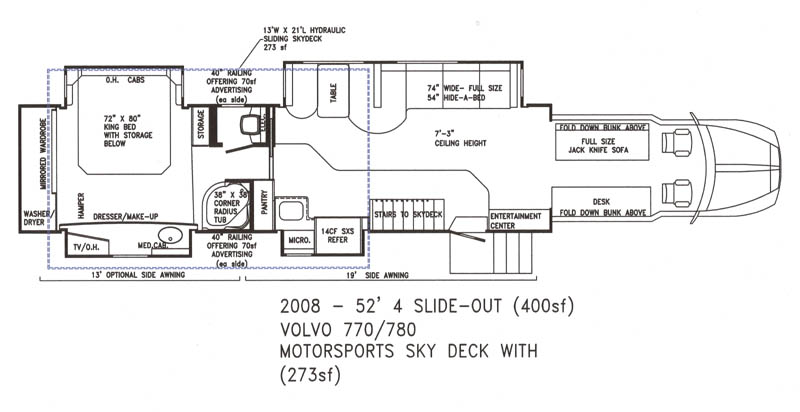

52 foot 4 slide Sky Deck  on Volvo 770/780 Model Truck

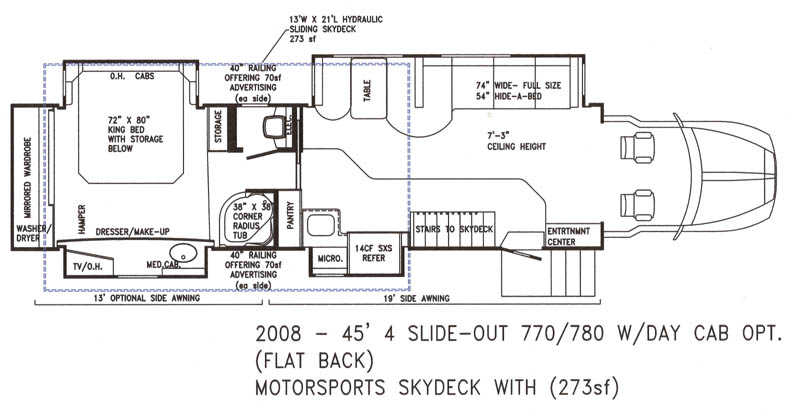

45 foot day cab opt, 4 slide Sky Deck  on Volvo 770/780 Model Truck
47 to 52 foot 2 slide Garage/Bedroom Above  on Volvo 770/780 Model Truck
52 foot 4 slide Mobile TV Studio on Volvo 770/780 Model Truck
52 foot 4 slide Wheel Chair Assessable on Volvo 770/780 Model Truck
53 foot 4 sld 2 Bed 2 Bath Wheel Chair  on Volvo 770/780 Model Truck
52 foot 4 slide Entertainer Coach on Volvo 770/780 Model Truck
52 foot 4 slide Bunkhouse Coach on Volvo 770/780 Model Truck
45 foot 1 slide Cargo Hauler Coach on Volvo 770/780 Model Truck
46 foot 4 slide with Volvo 770/780 with our shortened day cab option
45 foot 4 slide with Volvo 770/780 with our shortened day cab option
45 foot 3 slide with Volvo 770/780 Model Truck
40 foot 3 slide with Volvo 770/780 with our shortened day cab option
floor plan for a 35 foot Custom Enclosed Self Propelled Trailer
floor plan for a 40 foot Custom Enclosed Propelled Trailer
Ultra Line Four slide out FULLY UPGRADED motor coach  wide body
7.5 foot interior height  R30 ceiling insulation R10 FULL vacuum bonded walls
& R35 Floor insulation ( compare this is one of the best in the industry)

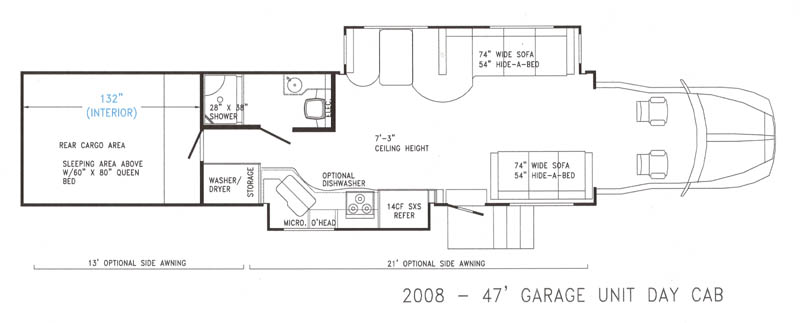

2009 Model  Ultra Coach 47 Two Slide Silver, Gold & Platinum
This Garage coach floor plan can be varied in the garage area to accommodate a larger vehicle
the interior height of the garage can also vary and will translate to the interior height of the Bedroom above the Garage
This design accommodates 4 dirt Bikes in the rear garage and features a hydraulic beaver tail and power rear gate
( tell us what u need to haul )

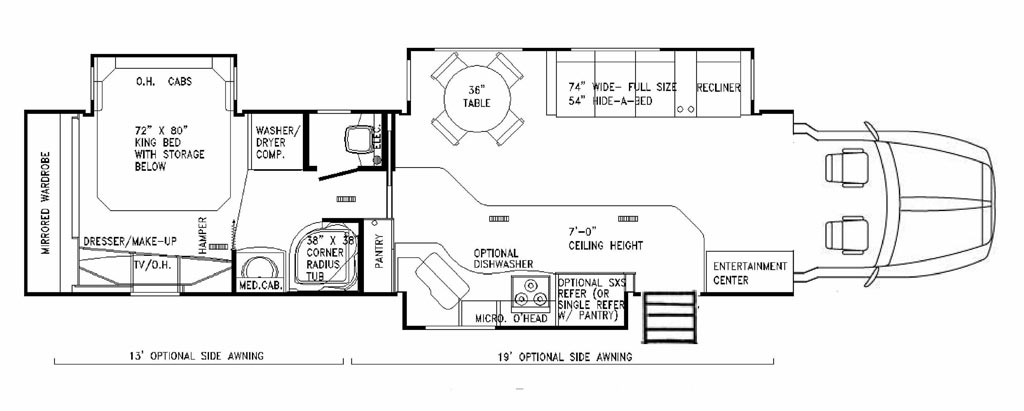

Model  Ultra Coach 46 Triple Slide Silver, Gold & Platinum
Also Available As A Four Slide For 2006
Triple slide outs with a converted day cab truck & no rounded back cap
Upgraded  wide body  top of the line custom coach very well built and luxurious
This floor plan will accommodate a 50 inch Tv
Bumper to bumper measurement on this motor coach  approximately 46 feet

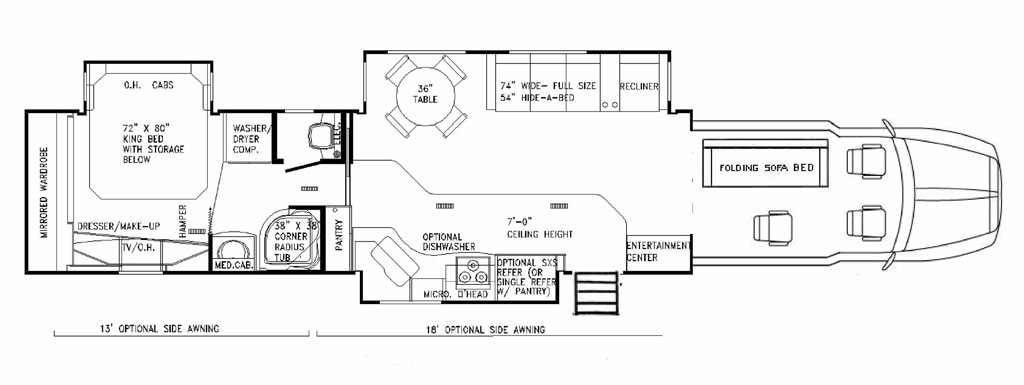

Model  Ultra Coach 50  Triple Slide Silver, Gold & Platinum
Also Available As A Four Slide For 2006
Triple slide out FULLY UPGRADED motor coach  wide body
7 foot interior height full R25 ceiling insulation R10 vacuum bonded walls
compare this is one of the best in the industry
This floor plan will accommodate a 42 inch Tv
Bumper to bumper measurement on this motor coach  approximately 50 feet

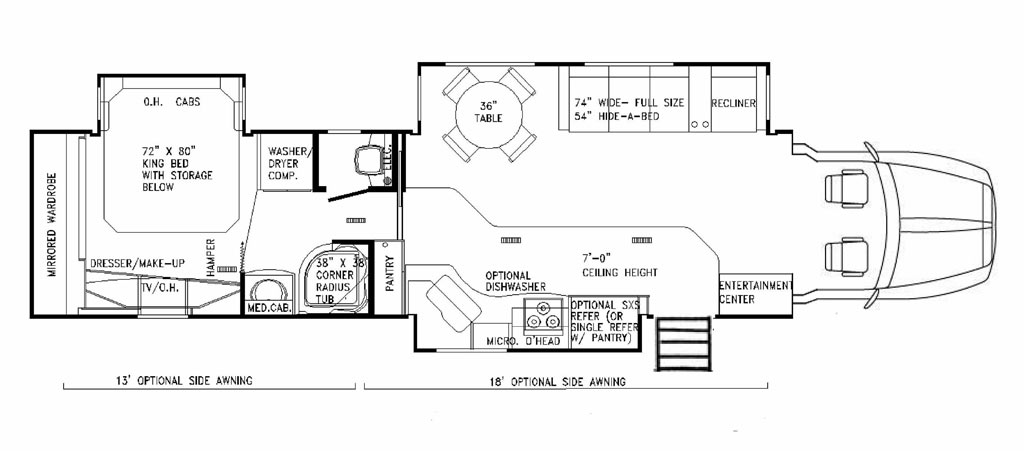

Model  Ultra Coach 45 Triple Slide Silver, Gold & Platinum
Also Available As A Four Slide For 2006
Triple slide outs with shorter living room area and converted day cab truck
Upgraded  wide body  top of the line custom coach very well built and luxurious
Bumper to bumper measurement on this motor coach  approximately 45 feet
This floor plan will accommodate a 42 inch Tv
 Model  Ultra Coach 45 Triple Slide Silver, Gold & Platinum
Triple slide outs with shorter living room slide and full size cab
Upgraded  wide body  top of the line custom coach very well built and luxurious
Bumper to bumper measurement on this motor coach  approximately 45 feet

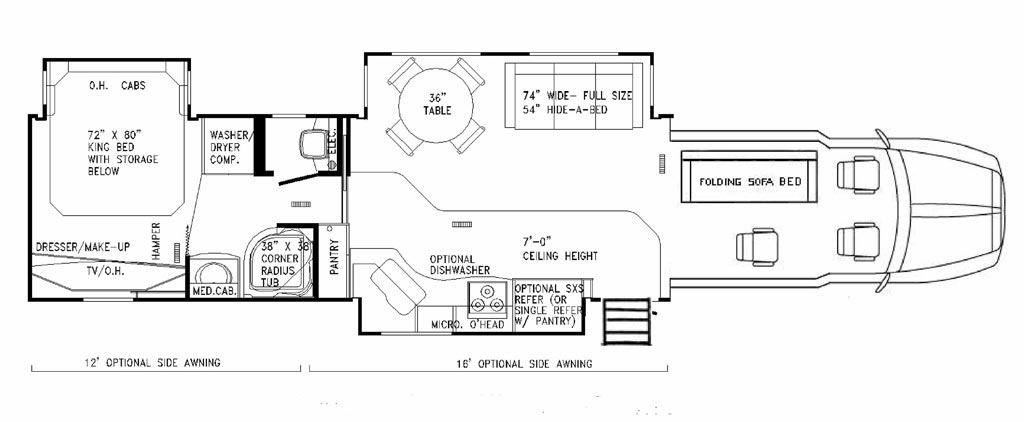

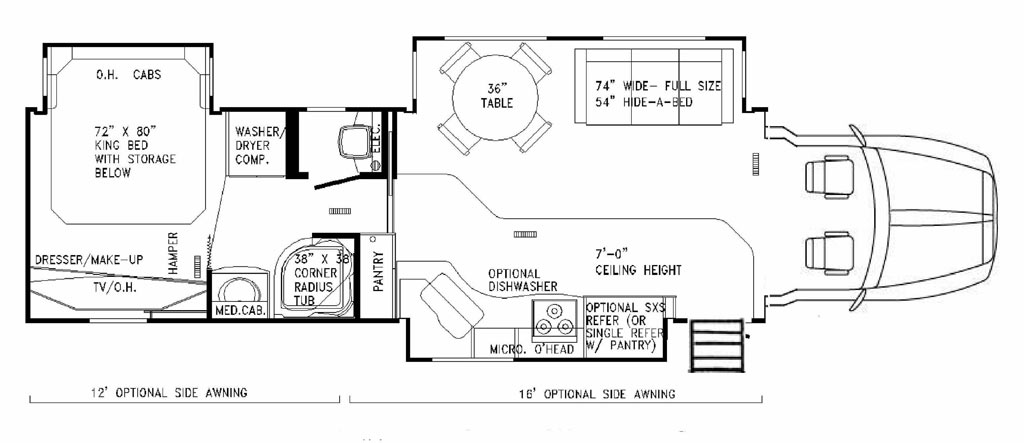

 Model  Ultra Coach 40 Triple Slide Silver, Gold & Platinum
Triple slide outs with shorter living room slide and converted day cab truck
Upgraded  wide body  top of the line custom coach very well built and luxurious
Bumper to bumper measurement on this motor coach  approximately 40 feet



Entertainer Model  Ultra Coach 52 Four  Slide Silver, Gold & Platinum
( No more Exhaust fumes and Noise from the rear Engine Much EASIER   to find service out on the road than a bus with a hidden rear engine  )
Sleeps a total of 14 with 6 rear bunks 1 make down dinette 2 hide-a -bed sofa the only one not available with slides in 3 cab two lower jack knife sofas & two in the cab upper bunks . Two bathrooms capable of temperature extremes hot & cold
Bunkhouse  Model  Ultra Coach 53 Silver, Gold & Platinum
Great for transporting sports teams or large groups in comfort & style
front cab room can be a meeting room lounge or be used for added sleeping
Coach has a large rear basement cargo bay aprox 8 ft X 6 ft 40 in tall for gear
Custom Built prices ranging from 350 to 550K
Contact Tim Atchesen @ 918-607-8005 about renting a bunkhouse unit to  move your group Very hassle free comfortable transportation
  Wheel Chair Accessible Ultra Coach 52 Four Slide Silver, Gold & Platinum
Customized  for YOUR individual needs don't allow anything to keep you from traveling in comfort and style
Wheel Chair Accessible Ultra Coach 52 Four Slide Silver, Gold & Platinum
Two Bedroom Two Bathroom Giving separate quarters for a care giver/driver
Customized for YOUR individual needs and situation
Model Custom Ultra Coach Garage Double Slide
Model Custom Ultra Coach Bed Garage Double Slide
Available in Silver ,Gold & Platinum Option Packages
New double slide garage motor coach wide body  the garage area can
be varied  from 14 to 18 feet giving an overall length from 46 feet to 52 feet
this floor plan can sleep 2 on the hide a bed sofa and 2 more with an
optional make down dinette booth with a dedicated garage area
and an optional  full rear hydraulic bedroom drops down when needed

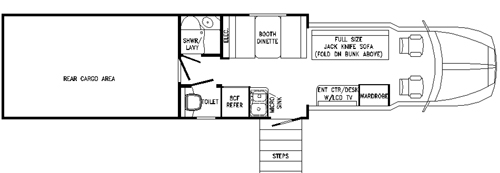

Critical Care Cargo Hauling Coach Ultra Silver, Gold & Platinum
Shown with Volvo 770 or 780 Model Class 8 Chassis
Custom built to order Prices ranging from 298 to 425K
Cargo Area show is 13 feet 10 inches X 8 feet wide with a 40 foot bumper to bumper measurement shown will sleep 5
