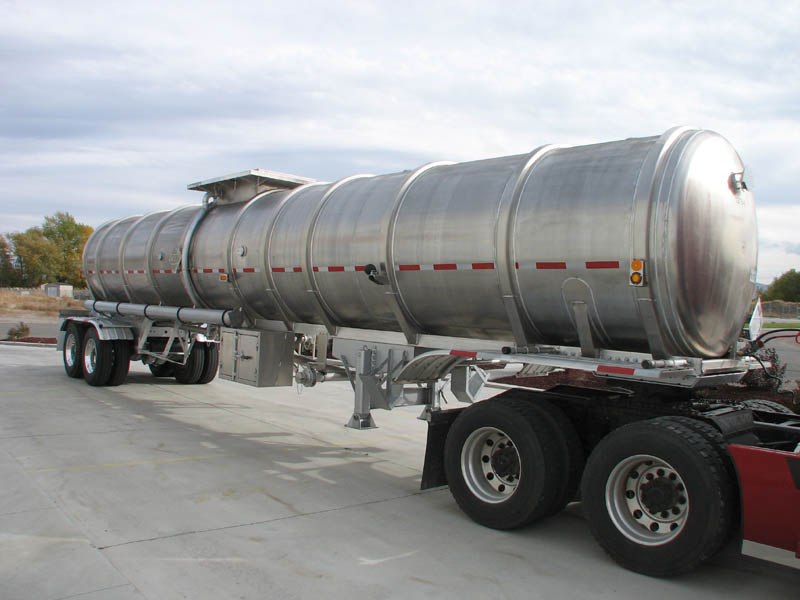

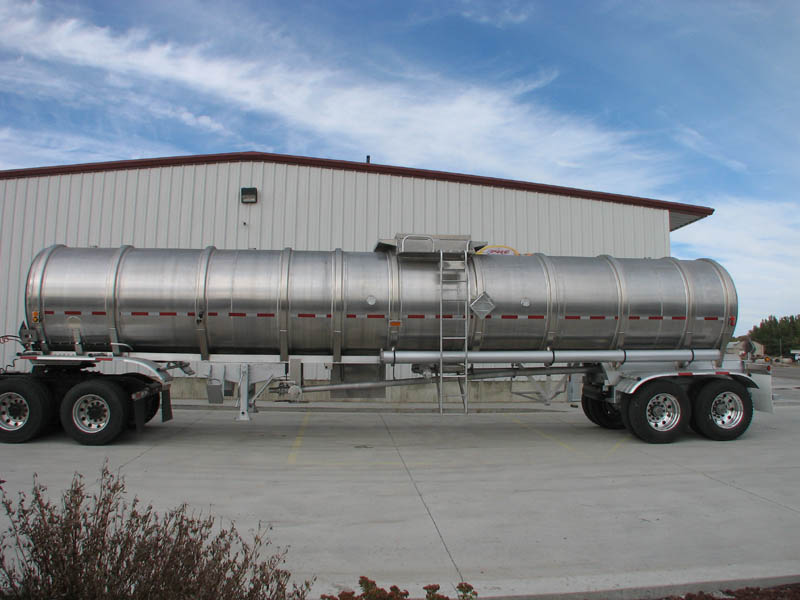

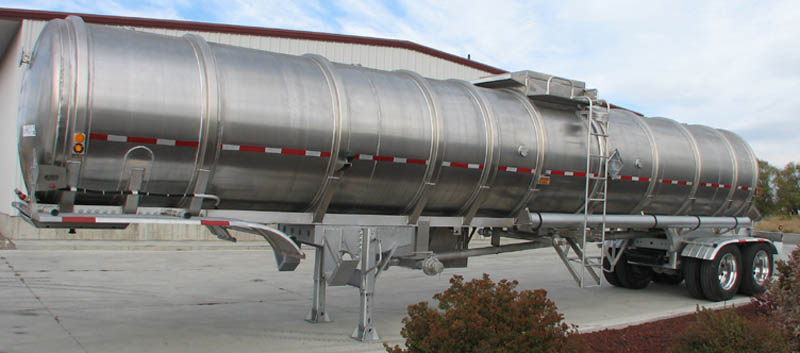

Cylindrical tank manufactures with high resistance quality aluminum 5454-H32
¼ body thickness single compartment for crude oil transportation

8400 Gal +1% 200 Barrels  42 Feet 11 Inches X 96 Inches wide

Rings on the cylinder body are manufactured in aluminum quality 5454-H32 with
3/16 in hat shape

Baffles 4 aluminum ¼ dome with man holes

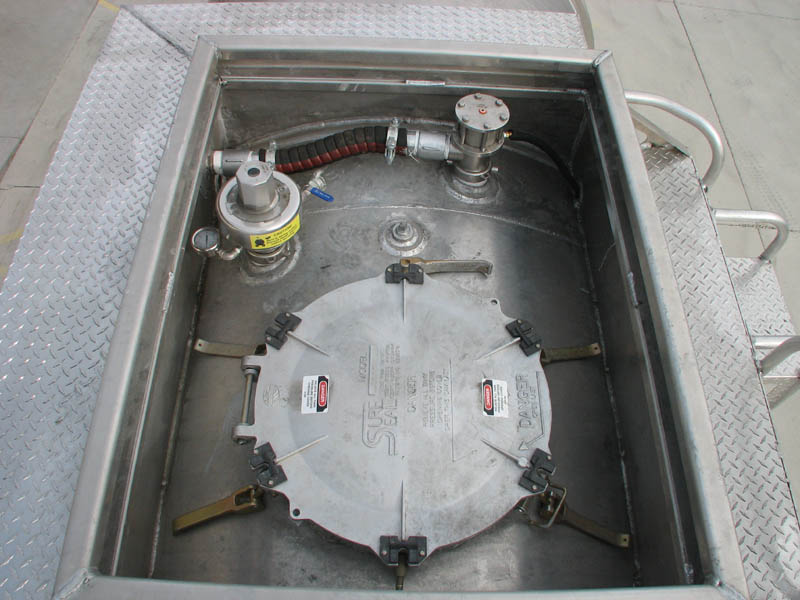

One 20 inch man hole installed tank top centered brand Knappco with 6 quick opening adjustable cam levers . Retractable spill box included .1 Scully vent valve 1 Girard pressure/vacuum valve as per DOT 407 code

Sub frame constructed from 6061 T-6 structural grade aluminum

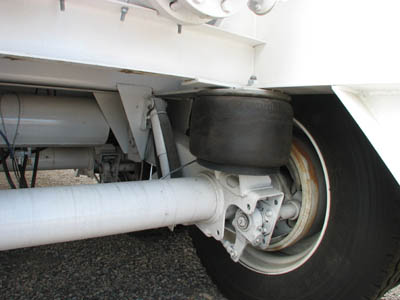

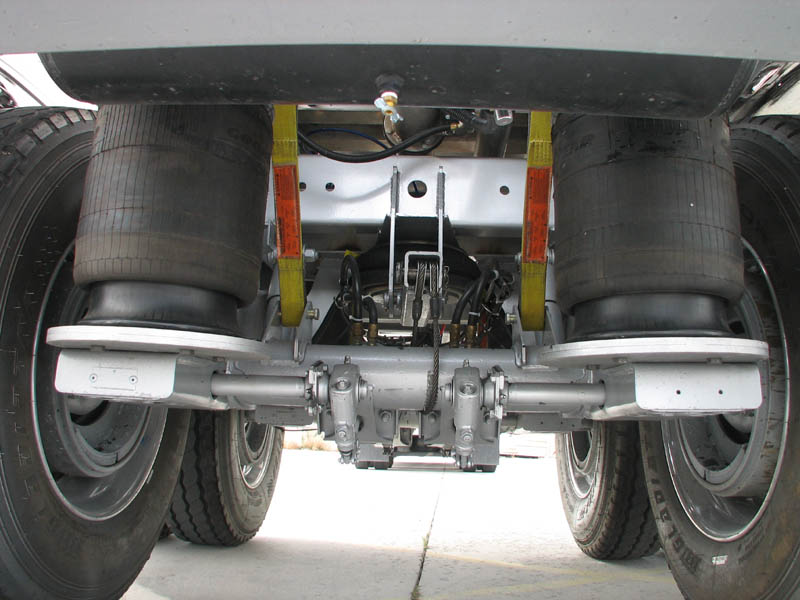

Air ride suspension 2 Axle 71.5 track with automatic slack adjusters 30-30 spring break chambers Hendrickson Intraax 30/25 or Meritor RFS-30T  brand depending on availability

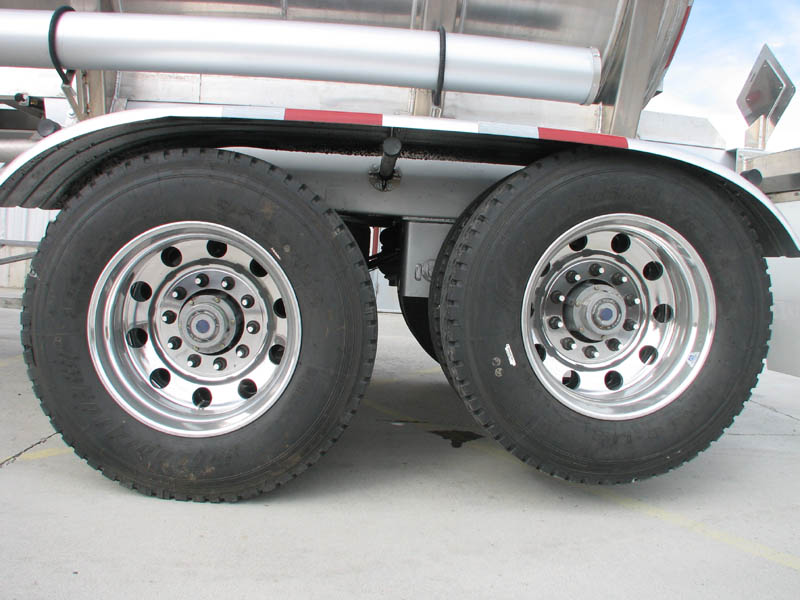

Rear of  two axles is retraceable or lift axle

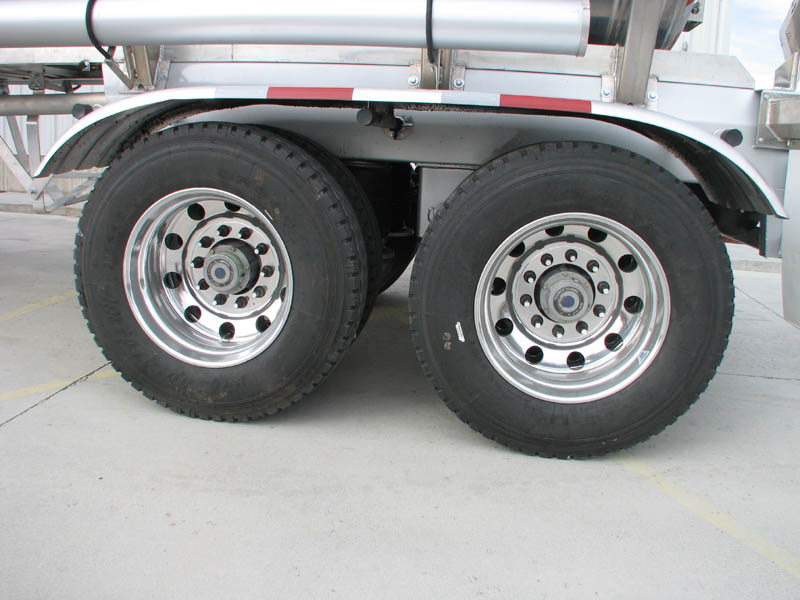

8 Aluminum 24.5 wheels 7,800 lbs rating Hub Pilot 8 11R 24.5 16 Ply Gladiator tires

Suspension chassis manufacture from high resistance carbon steel plate

Anti lock breaking system Mertitor-Wabco model 2S/1M

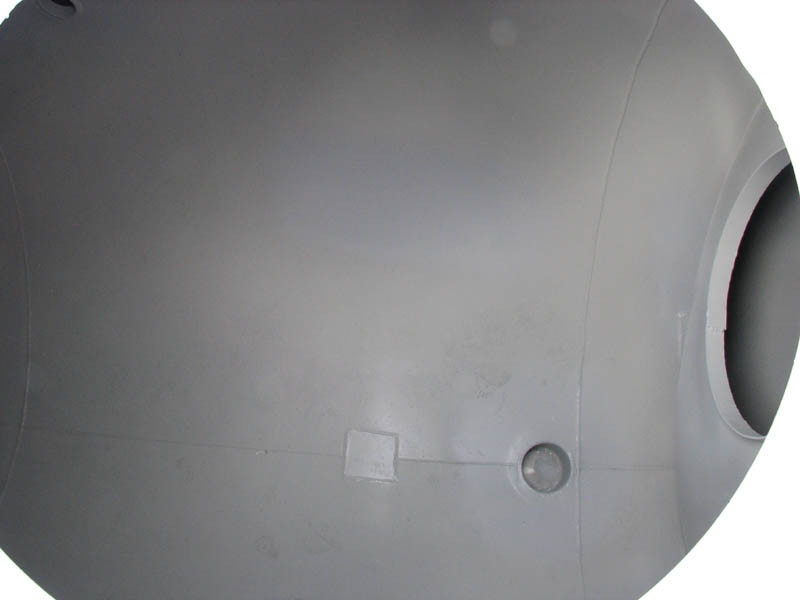

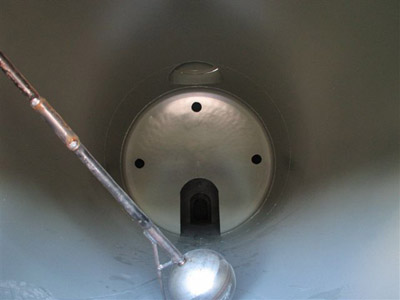

Interior tank lining Tnemec HI-BUILD EPOXOLINE SERIES  rated 180 degrees F
Chemical  rated for Sweet and Sour Crude

Kingpin HS Steel grade 50 with 3/8 plate and Holland Pin with 2 inch adjustment holes

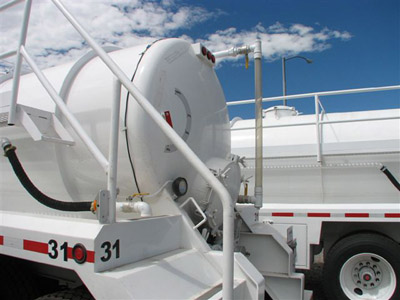

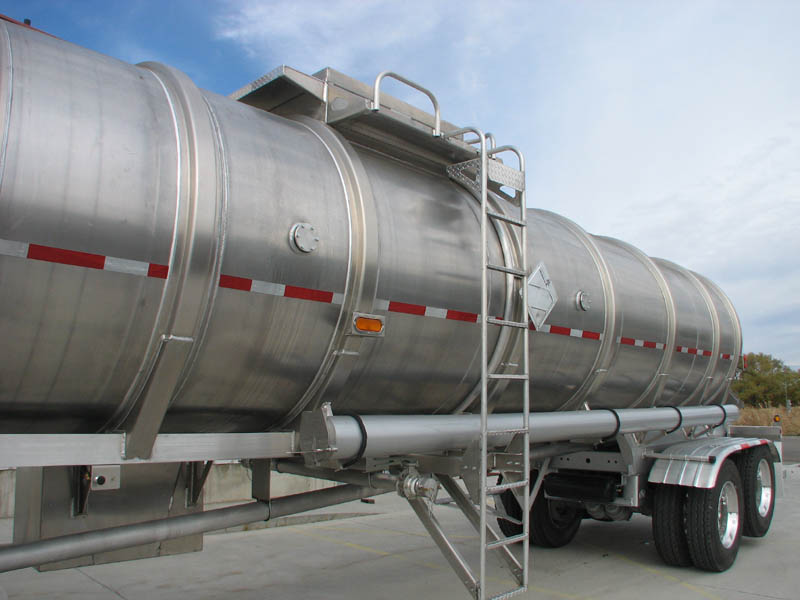

Ladder on road side built from high resistance aluminum

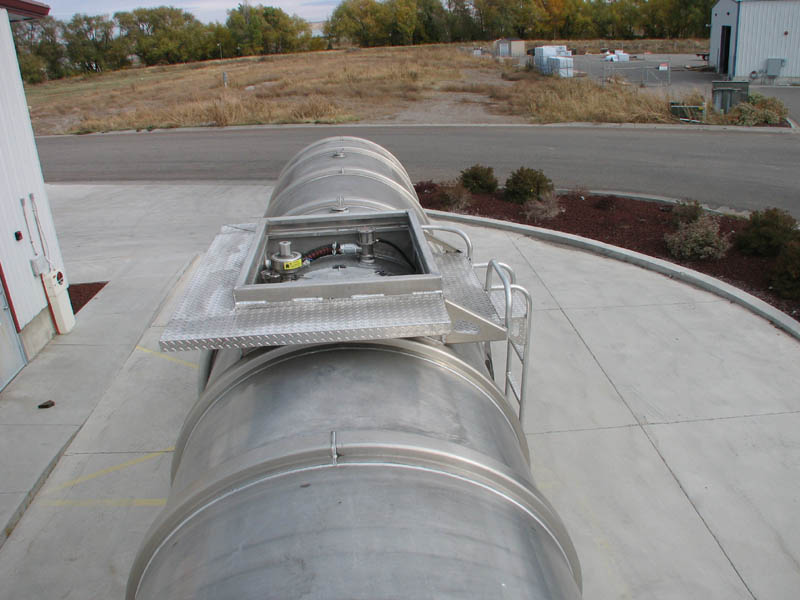

Walkway around spill dam 12 inches wide on road side of spill dam constructed from aluminum diamond tread material

4 Aluminum fender 2 front 2 rear

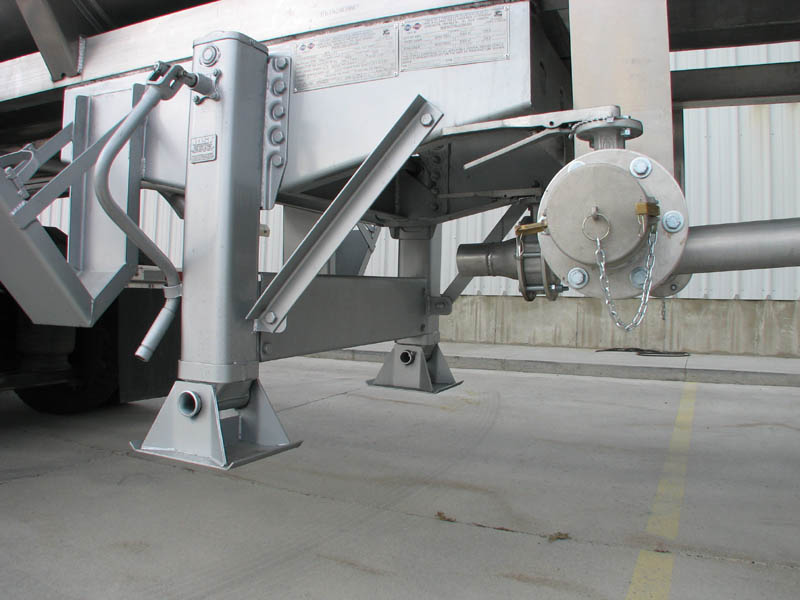

Landing gear two speeds 3/8 structural aluminum base Jost brand

Discharge system vapor recovery valves with 3 inch tubing and connections

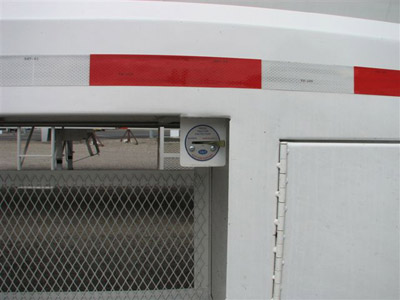

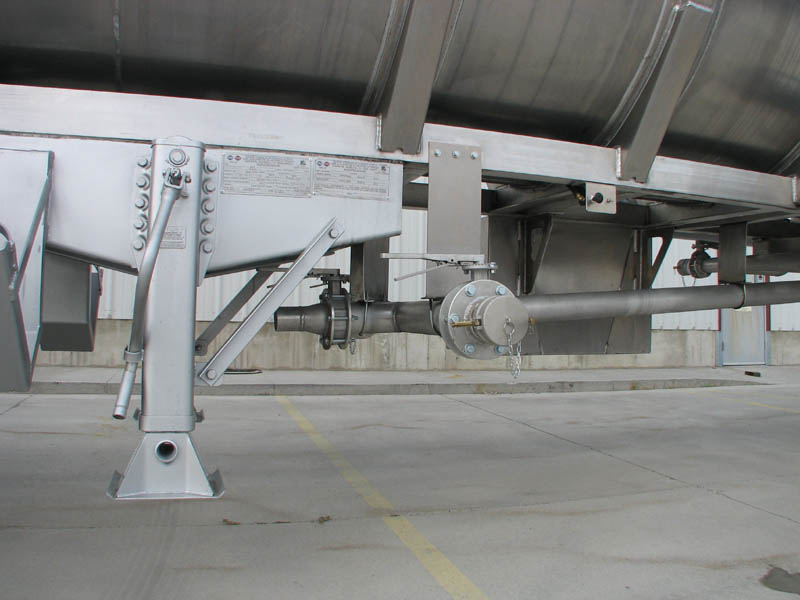

6 Inch by 4 inch security valve with 4 inch tubing and three 4 inch valves with lateral discharges and pump preparation between landing gears . Rear discharge from tank piped at a slope to the landing gear area . Rear Axle air bag dump to assure tank drainage and clean out to rear .

2 fire extinguisher holsters installed on each side of tank

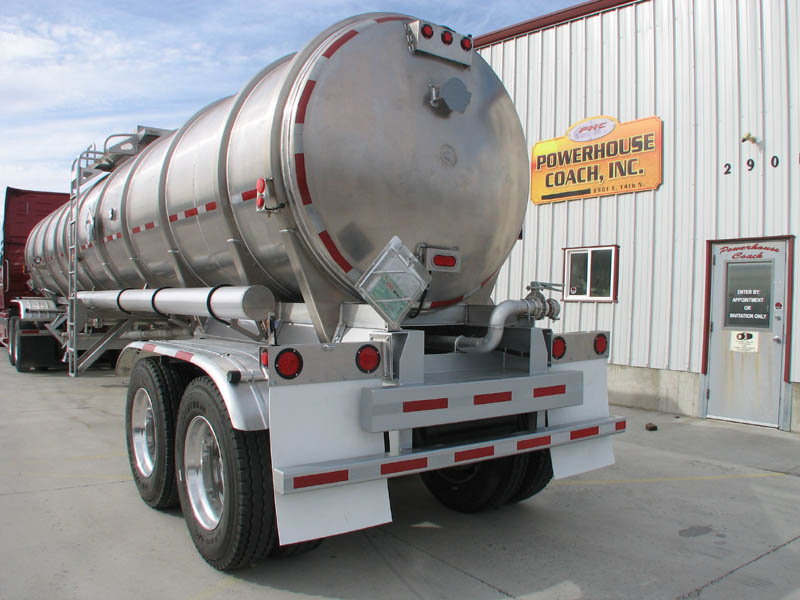

Shock resistant rear bumper structural aluminum as per DOT

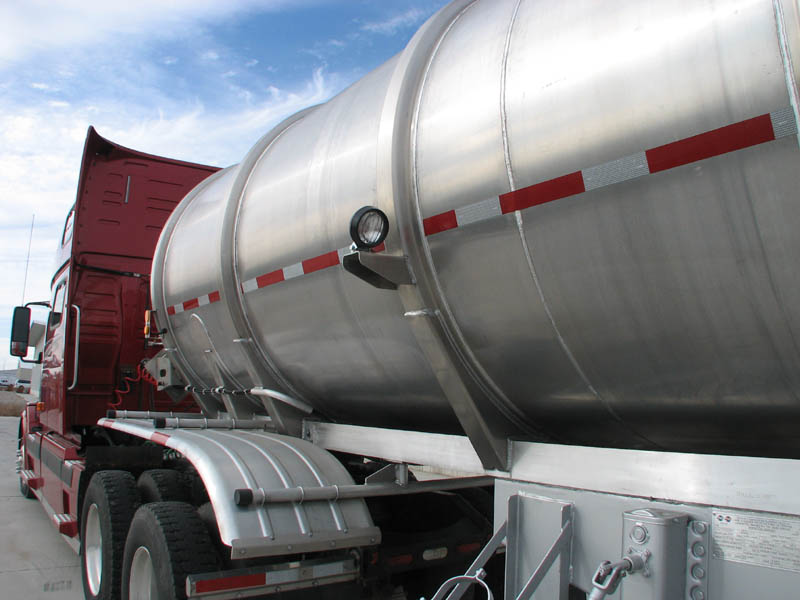

Sealed LED lighting and wiring harness also 2 inch wide reflective tape as per DOT & NHTSA

4 Mud flaps

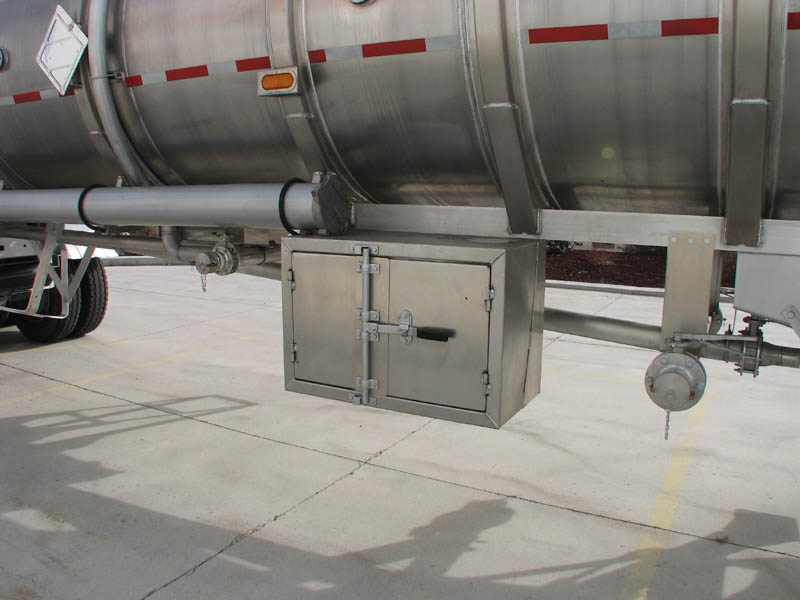

24 inch X 24 inch X 36 inch Tool Box

Pressure gauge and Temperature gauge and mechanical level float gauge installed on drivers side of the tanker

Clean out/spill hoses four 3 inch hoses on top of tank and two 3 inch hose on each side of the tank

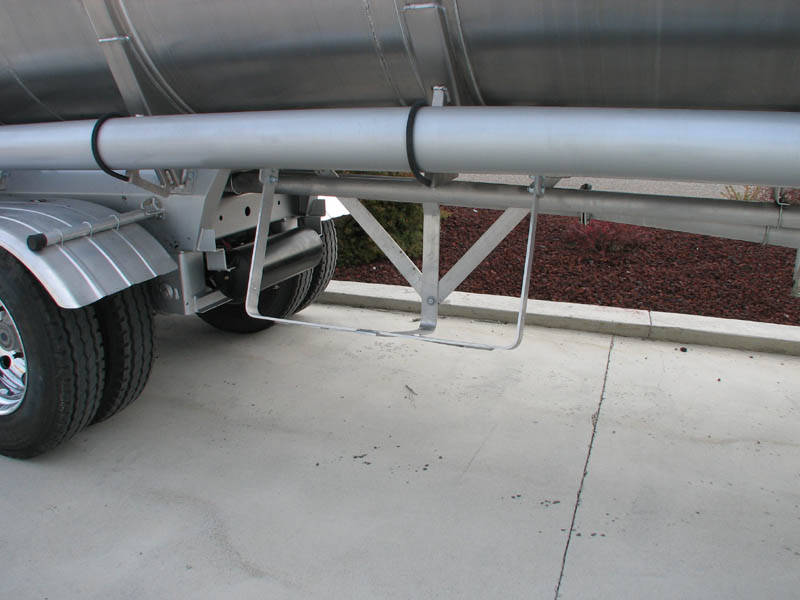

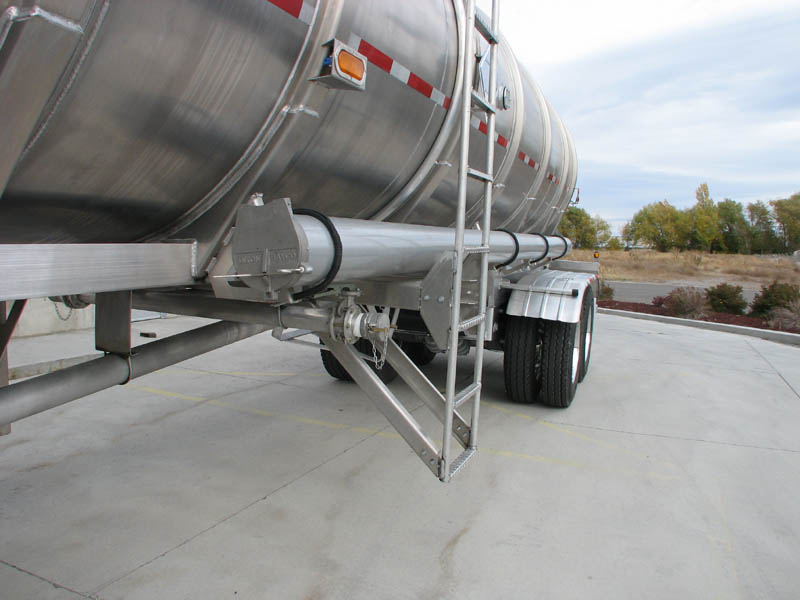

20 wide aluminum hose tray one on each side of tank

Four DOT sign holders

Certified Hermetic, Hydrostatic & Pneumatic testing information provided for each tank
MWPA 25 PSI test pressure 40 PSI


$ 91,500.00
+FET Tax +? State Sales Tax or Interstate Exemption
+ FREIGHT  Approximately 2,600.00
